As a leader in the development and manufacture of liquid die forging equipment in China, Guangzhou and Germany delivered a speech at the 2018 supply and demand Trading Summit of China Aluminum-Silicon processing Industry chain hosted by SMM. Guangzhou and Germany general manager of the development trend of lightweight cars and the market for in-depth analysis and discussion, a lot of practical information, you want to know the knowledge of lightweight cars all here!
1. The trend of lightening
"made in China 2025" regards lightweight as the core technology and common technology in the development of many key industries. The application of liquid die forging technology is an important means to realize the lightweight of high strength and tough aluminum base.
In the road map of automobile technology development published in 2016, liquid die forging, as a key technology to solve the structural components of vehicle aluminum alloy chassis, has been included in the key development direction. TESLA, GM, Toyota, Dongfeng, China Railway, ZTE, PRIDE, SPRINGER and other industries top customers fully recognized and actively applied.
Benefiting from "made in China 2025", highway transportation (new energy), rail transit, communications, automation, health sports and other industries will still maintain rapid growth in the next decade. In five years, the market size of aluminum-based lightweight products in China will exceed 200 billion yuan / year. Drive the market demand for lightweight equipment to exceed 20 billion yuan per year.
2. Market analysis

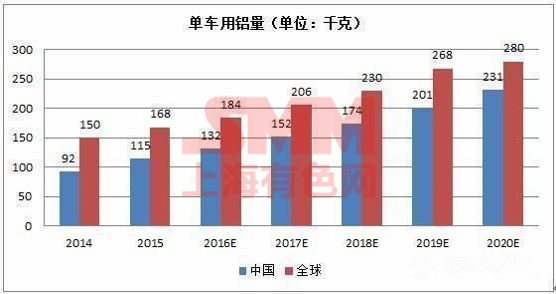

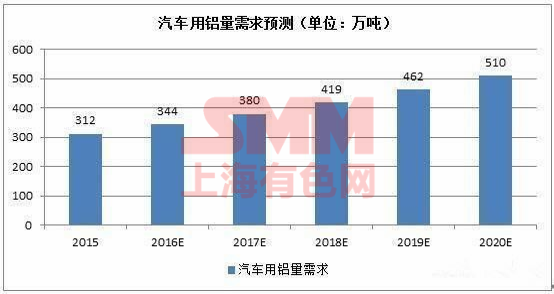

In 2017, the amount of aluminum used in automobile in China is 3.8 million tons, and it is estimated that the amount of aluminum used in automobile in China will be 5.1 million tons in 2020, of which casting aluminum accounts for 80%, and the market space can reach 200 billion yuan.
The demand for lightweight aluminum alloy for new energy vehicles is more urgent. Restricted by the weight of the power battery and the range of the power battery, the reduction of the importance of the body is more urgent than the traditional car. The traditional metal material is not qualified for the new energy vehicle, and the aluminum alloy is the better choice. The surge in production of new energy vehicles has accelerated demand for aluminium.
3. Market Analysis-other Markets

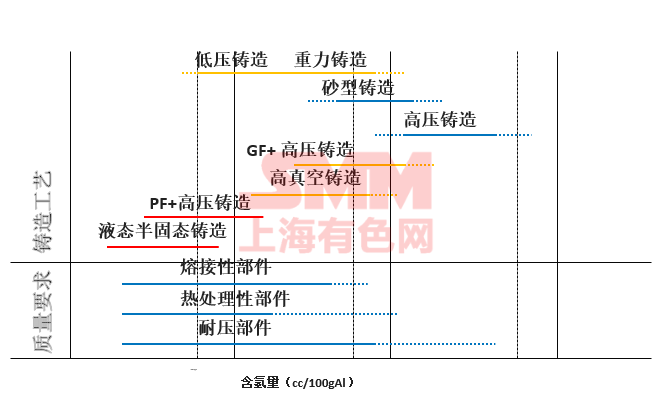

Analysis of lightweight forming process and its Future Development
Technological Development of Aluminum-based lightweight products (2018-2021)
1) process technology: PF (aerated) casting
Material application: custom aluminum alloy (aluminum-silicon system, aluminum-magnesium system, aluminum-copper system)
Product direction: T6 heat treatment, complex shape, thin wall, high mechanical properties
2) Technology: gravity casting, low pressure casting, differential pressure casting
Material application: conventional cast aluminum alloy
Product direction: T6 heat treatment, simple shape, large product thickness, preset sand core
3) Technology: high voltage construction
Material applications: cast aluminum alloy, magnesium alloy
Product direction: panel, decorative parts, non-T6 heat treatment
4) Technology: GF+ high pressure casting
Material applications: cast aluminum alloy, magnesium alloy
Equipment capability: panel, decorative parts, non-T6 heat treatment
5) Technology: liquid (semi-solid) die forging
Material applications: custom aluminum alloy, SiC aluminum matrix composites
Product direction: T6 heat treatment, complex shape, high mechanical properties
Application Mode of liquid (semi-solid) Die forging process

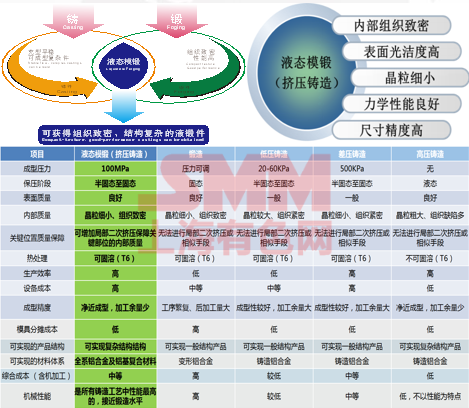

1. Introduction of process technology
Process principle:
Liquid die forging, that is, squeeze casting, also known as soup forging in Japan. Its principle is to apply greater mechanical pressure (about 100MPa) to the liquid or semi-solid metal entering the cavity, make it form and solidify, and obtain the casting by the method of casting and forging.
Technical advantages:
The mechanical properties of liquid die forging (squeeze casting) products are obviously higher than those of other casting processes, which are close to the level of forgings of the same alloy, and have achieved a good balance between cost and performance.
Application status:
Liquid die forging (squeeze casting) process has entered the scope of large-scale industrial application abroad, but because this technology can also be widely used in the military industry, Therefore, the advanced equipment technology of this process has been blocked by the patents of Japanese Ministry of Astronautics and other companies for a long time and strictly controlled the export of large-scale equipment, which has seriously hindered the research and development of domestic equipment development and process application industry.

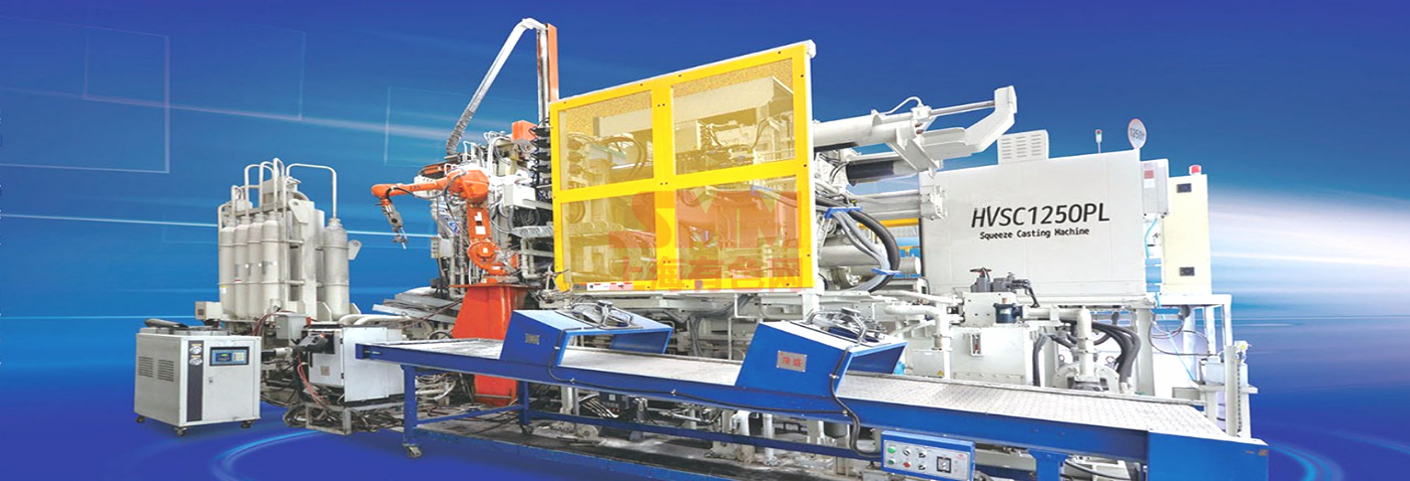

2. Core equipment advantage
The main results are as follows: 1) the unique technology and accurate equipment stability ensure the excellent quality of the process.
2) low maintenance design greatly reduces the cost of service and parts replacement
3) excellent hydraulic system design ensures the reliability of product realization and greatly reduces energy consumption.
4) the fully integrated control system can meet the one-stop and customized service needs of customers.
5) the design of man-machine communication is simple and convenient, which greatly improves the availability of the equipment.
3. The "high-end equipment +" model meets the needs of customers in depth.
The characteristics of market demand determine that we must occupy the high point of the market. Through the implementation of the complete set of technical system solutions of "lightweight high-end equipment +", we should take advanced equipment as the core and integrate the extended development of new products, new processes and new materials. Supplemented by market expansion, production operation and other services, in-depth meet the needs of customers, the formation of a strong vitality and competitiveness of the new form of service model.
Customer demand focus:
1) Plant layout and process flow design under new equipment;
2) Product structure design and optimization under the new process;
3) Mould design and material selection under new products;
4) cost competitiveness and technology upgrading space under new products.
Guangzhou and Germany omni-directional capacity building:
1) the R & D and manufacturing capability of complete sets of equipment with reliable and advanced nature;
2) the development and production capacity of process products with strong competitiveness;
3) have the advanced factory design and operation ability to perfect the whole process;
4) leading technology upgrade service capability with continuous vitality.
4. Specific application example
